Make sure that the protective ventilation system remains in top condition after installation by timely changing the filters.
The BMAir filters ensure that machine drivers work more safely than ever, even in polluted work environments. Especially in polluted environments. Because we thoroughly test all filters for their optimal functionality and our advanced and patented technology make our systems and filters exceptionally effective. Even under the harshest conditions.
Download a filter replacement procedure here:
The protective ventilation system ensures that sufficient pressure is created in the cabin. However, the air drawn in must pass through a filter combination to actually keep contaminants out of the cabin. Installing the right filter combination and changing the filters in a timely manner is very important. Possible blowout of a filter would mean that an operator would still be at risk.
P1 & P3 Dust Filters
A P1 dust filter is a pre-filter that can capture coarse dust particles to protect the following filters. A P1 filter can prevent the P3 dust filter from leaking or clogging the activated carbonfilter. So the filter has an important function in a complete filter package. This filter has an F5 class and is manufactured and supplied according to the ISO16890 standard.
A P3 filter, is an absolute filter that can capture harmful particulate matter such as asbestos or quats dust. This filter is tested for leak tightness and comes standard with an accompanying filter certificate. All P3 dust filters have an H13 class and are produced and supplied according to the EN1822 standard.
Activated Carbon Filters
During soil remediation, for example, or at a recycling site, harmful gases/fumes may be released. Activated carbon particles in an activated carbon filter exert an attraction to gaseous or liquid particles (molecules). A carbon filter is formulated for a specific type of contamination, EN12931 provides a clear classification for different chemical substances:
A – Activated carbon for capture of aromatic hydrocarbons
B – Impregnated carbon for capture of inorganic vapors
E – Impregnated for capture of acids
K – Impregnated for capture of ammonia compounds
HG – Impregnated for capture of organic mercury compounds
A combination of the different types of coal is possible, depending on the nature of contamination.
 |

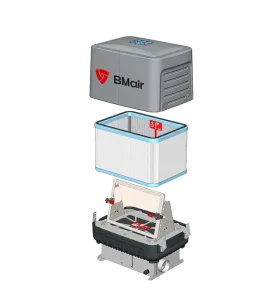

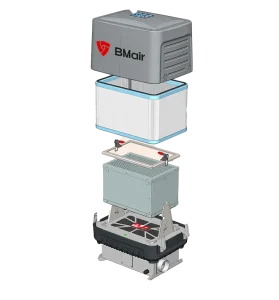

Combifilter Quarz BMair MAO-3
|
 |
Combifilter Benzene BMair MAO-3
|
|
Combifilter Dredger BMair MAO-3
|
|
Combifilter ABEK BMair MAO-3
|
|
Combifilter Mercury BMair MAO-3
|
|
Combifilter Ammonia BMair MAO-3
|
 |

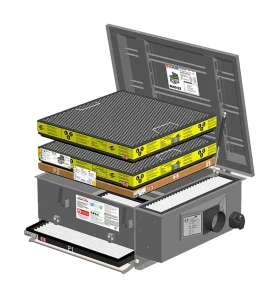

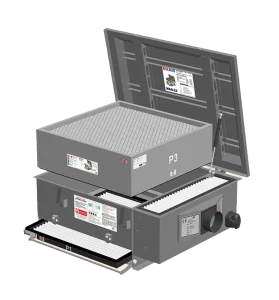

Combifilter Quarz BMair MAO-22
|
 |
Combifilter Benzene BMair MAO-22
|
|
Combifilter Dredger BMair MAO-22
|
|
Combifilter ABEK BMair MAO-22
|
|
Combifilter Mercury BMair MAO-22
|
|
Combifilter Ammonia BMair MAO-22
|
 |
Combifilter Quarz BMair F20
|
 |
Combifilter Benzene BMair F20
|
|
Combifilter Dredger BMair F20
|
|
Combifilter ABEK BMair F20
|
|
Combifilter Mercury BMair F20
|
|
Combifilter Ammonia BMair F20
|
 |
Combifilter Quarz BMair F33(R)
|
 |
Combifilter Benzene BMair F33(R)
|
|
Combifilter Dredger BMair F33(R)
|
|
Combifilter ABEK BMair F33(R)
|
|
Combifilter Mercury BMair F33(R)
|
|
Combifilter Ammonia BMair F33(R)
|
Coming soon
Coming soon
Industry Application Guide
| Application | Recommended Filter Combination |
| Dust – no gases or vapors Mining & Quarry (silica) Construction material recycling (quartz, asbestos, concrete) Mineral wool recycling (rock wool, glass wool) Paper recycling (wastepaper) Plastic recycling Waste wood processing (excluding hardwood) Scrap metal recycling and handling Asphalt mixing material processing |
HEPA |
| Dust + Gases or Fumes at locations such as: Household waste handling Light packaging recycling Bitumen, asphalt recycling Contaminated wood (hardwood, railway sleepers, fences treated with tar) |
Particulate, HEPA & Activated Carbon Type A |
| Dust + Gases or Fumes at locations such as: Composting plant (enclosed hall) |
Particulate, HEPA & Activated Carbon Type AK |
| Dust + Gases or Fumes at locations such as: Landfills Ordnance recovery Contaminated site remediation Fire damage restoration Agriculture, Horticulture & Viticulture |
Particulate, HEPA & Activated Carbon Type ABEK |
