After several years, Freshfilter has replaced the entry level FFController 2000 series with the digital 3000/3001 series. This cabin controller is completely digital, works faster and has a more modern appearance, so it fits seamlessly with the current cabin equipment.

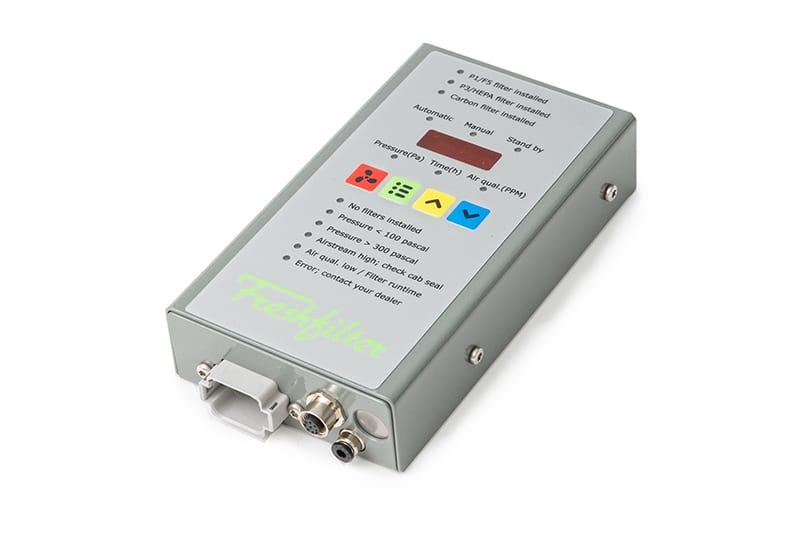

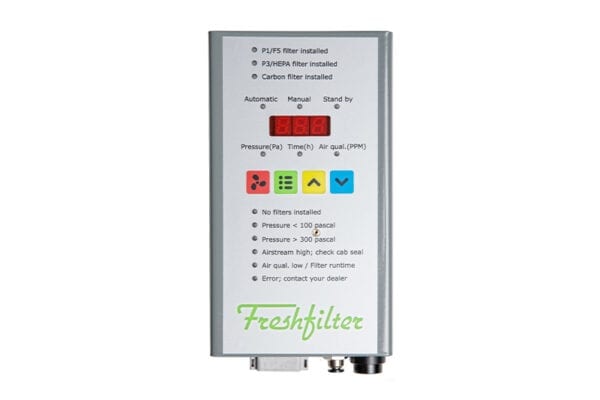

The FFController 3000 series is used to optimally control the overpressure system. To turn the Controller on and off, hold down the red MODE button for 3 seconds. From the moment you switch on the FFController, the controller system in the cabin starts to do its work. When the controller is in automatic mode, it ensures that the overpressure in the cabin remains at least 100PA. If there is too much or too little pressure in the cabin, an optical and acoustic alarm will be perceptible, whereby the operator is immediately warned of potential danger.
Up to three different types of filters can be detected and showed on the control panel:
When a filter is removed or installed incorrectly this will be displayed on the controller immediately.
Integrated HC Measure

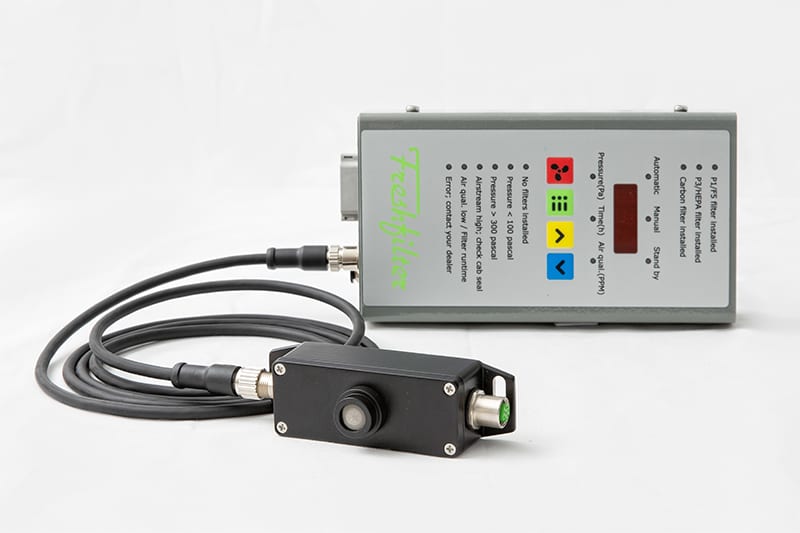

The panel can be optionally expanded with a hydrocarbon meter. The HC value can be displayed with a button on the LED screen. Plus, the controller warns (also if the HC value is not displayed on the screen) when there is an exceedance of 5 PPM. This HC module can also be integrated in the Controller 3000 at a later stage.
Cabin Leakage Alarm
The advanced FFController 3000 series will warn you in time! The automatic regulation of the controller panel drives the motor to 0-80% of its capacity to maintain cabin pressure and the controller will give a pre-warning when the cabin starts to leak to such an extent that the required pressure can no longer be achieved.
The FFController is tested conform the guidelines: EMC, R&TTE and electronical safety.
