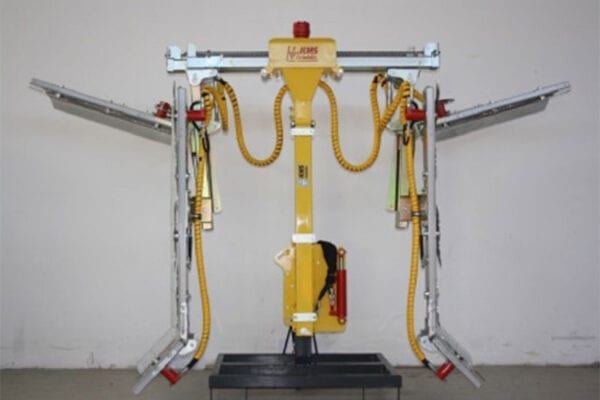

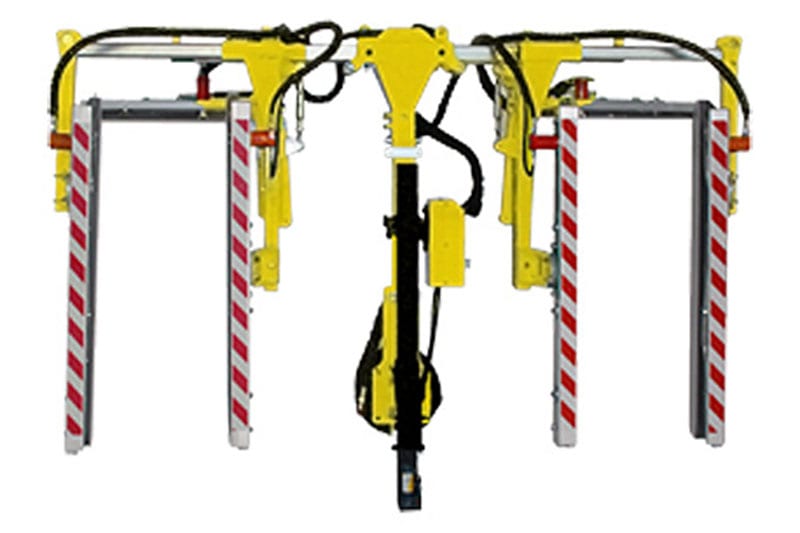

Variable Plus Trimmers

Description:

KMS Rinklin Variable Plus Vineyard Trimmers…takes all the great features that comes with the standard trimmer and then adds so much more. Ideally suited to the larger vineyard property and professional contractors who are looking for more from their trimming equipment.

One of the key benefits to the Variable Plus Trimmer is the addition of the KMS impact protection system to the top cutter. Offset rearwards the top cutter on the Variable Plus trimmer comes standard with 2 knives and can be folded 90 degrees to transport position, is height adjustable and angle can be changed through 90 degrees to vertical.

This model range also comes equipped with KMS Rinklin’s light and robust cutting unit including the unique splash guard that improves productivity and reduces debris, a folding transport protection for the knife (which always remains on the machine) and the wire-avoiding sickle knife it guarantees a long service life and clean cutting.



Base Features:

  • Cutter w. spray protection, powder-coated
  • Low rib belt, knife drive
  • Double impact protection on vertical cutters, automatic return
  • Impact protection for horizontal cutters by gas springs, moves to immediately to transport position (folds 90° to the rear, towards the carrier vehicle)
  • Folding transport guard for cutter
  • Wire-repelling polychrome curved knives, hydraulic drive
  • Hydraulic width adjustment, 1 x d-a (row widths 1.80 – 3.50 m)
  • Manual tilting of cutter, 30° l./r.
  • Manual angle adjustment for horiz. cutter, 90°
  • Manual height adjustment for horiz. cutter, 400 mm
  • Storage frame with hydraulic height adjustment



Optional Features:

  • A range of low maintenance KMS heavy duty masts – fixed or tilting
  • Able to be ordered with an adapter to suit other manufacturers masts or to share KMS equipment with current KMS mast, mount and joystick
  • Tractor brackets for a full range of manufacturers
  • 3 knife top cutter
  • Shoot gatherer for vertical cutter
  • Hydraulic tilting of vertical cutter
  • Hydraulic height adjustment of horiz. Cutter, 400mm
  • Hydraulic angle adjustment of horiz. Cutter, 90 degrees
  • Narrow row widths 1.6m – 2.8m
  • Standard or comfort joysticks
Specifications:
