FF M10 Filters

The FF M10 is a stack system with a filling height of 120mm. The 120mm should always be filled up, either with just filters or a combination of filters and fillers.

Thin P1 Filter

Due to the low filling capacity of the FF M10 unit, the P1 filter will be void with a carbon/P3 combination.

To fill up the unit, a carbon filter or a filler must be used.

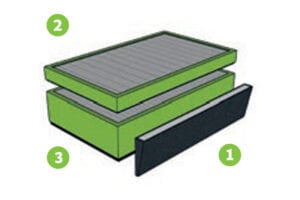

Common Combinations:

Pollution of dust only

1. VF608720EU5 – Pre-filter P1 (coarse dust particles)
2. VF603328EU13 – P3/H13 absolute filter (fine dust particles)
3. VR603392 – Empty filler frame (instead of a carbon filter)

Pollution of dust and vapours

1. VF608720EU5 – Pre-filter P1 (coarse dust particles)
2. VF603328EU13 – Carbon filter type ABEK (10kg)
3. KF603392ABEK – P3/H13 absolute filter (fine dust particles)

VIEW FF M10 System
